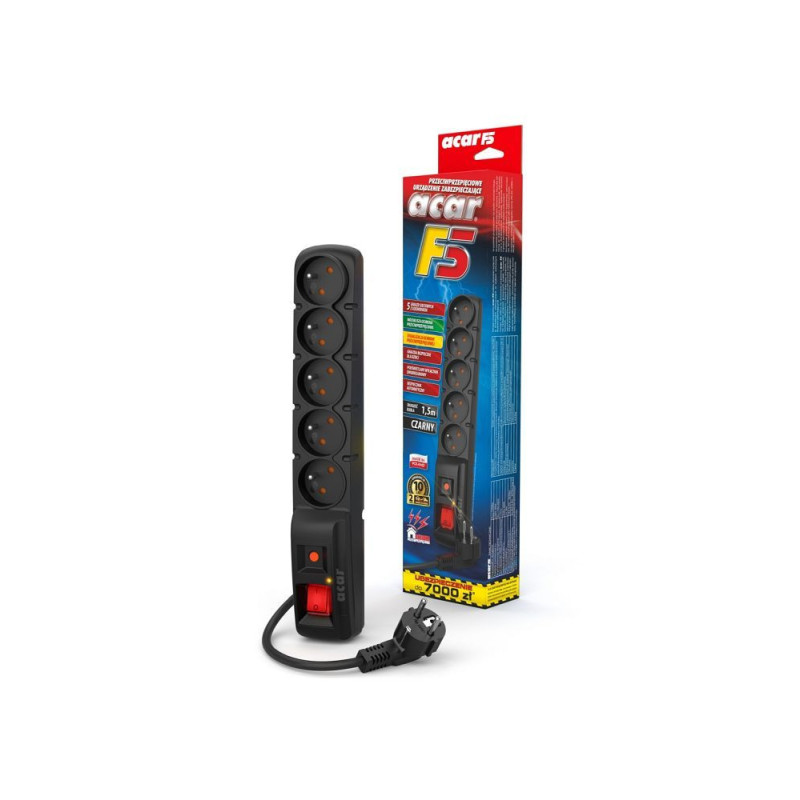

ACAR F5 is the most popular voltage filter by Acar. With a length of just under 33 cm, it offers five grounded power sockets—sufficient for most everyday applications.
Its compact size allows for convenient placement even on a desk, without taking up valuable space. The built-in automatic circuit breaker makes the device virtually maintenance-free. Thanks to its high efficiency, the ACAR F5 serves as a reliable basic protection device that’s worth having in any workspace. Mounting brackets are optionally available from the distributor.
Specification:
Permissible load: PMAX 2300 W
Rated voltage: 230 V
Rated frequency: 50 Hz
Rated load current: 10 A (MAX)
Surge protection response time: <25 ns
Maximum voltage: 250 V / 50 Hz
Protection level (UP): ≤1.3 kV
Nominal discharge current iN (L/N): 2 kA (8/20 µs)
Maximum discharge current iMAX (L/N): 6.5 kA (8/20 µs)
Fuse: one slow-blow automatic circuit breaker 10 A / 250 V
Electric shock protection system: protective grounding contacts connected to the grounding wire
Number of power sockets: 5 double-pole sockets with grounding contact 10 A / 250 V
Switch: double-pole, illuminated
Enclosure: self-extinguishing plastic
Dimensions: 330 × 54 × 55 mm
Weight: ~0.43 kg
